Intel Exchange Deployment Architecture

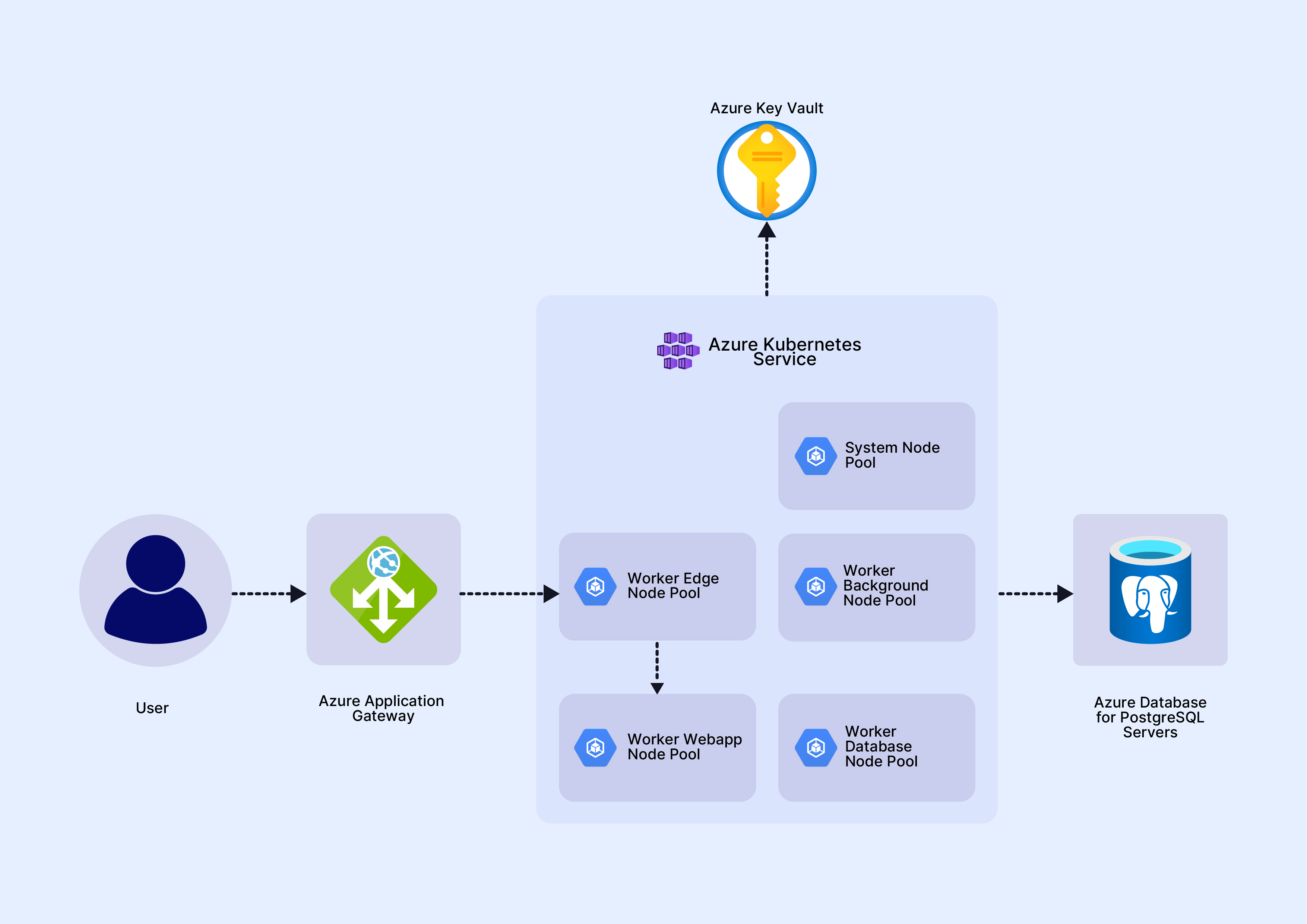

The following diagram displays a high-level deployment of the Intel Exchange services on Azure using various Azure services. The flow ensures high availability and secure handling of resources and traffic, suitable for the deployment of the CTIX app on Azure.
